Rebars

Product Details

The new rolling unit 3 can produce armature between 5.5 and 40 mm and uses advanced techniques that allow to reduce production costs. "The line has been run endlessly using integrated welding machine technology," according to the equipment supplier.

Common Produced Quality Standards
Standard Origin Grade Features
ES 262 : 2000 Egypt 360
400
ES 262-2 : 2015
and / or
ISO 6935-2:2007
Egypt
/
Europe
B400BWR W
B420DWR W + HD + EQR
B500BWR W + HS
B500CWR W + HS + HD
B500DWR W + HS + HD + EQR
BS 4449 :1997 British 460A W
460B W
BS 4449 :2005 British B500A W + HS
B500B W + HS
ASTM A615 USA Grade 60
Grade 75 HS + NUC
ASTM A706 USA Grade 60 HD + EQR + NUC
DSTU 3760 :2006 Ukraine A400C HD
A500C HS + HD
DIN 488 : 2009 Germany B500A HS
B500B HS
SASO 02 :1992 KSA High Strength HS
NL 50 : 1999 Lebanon LRB 400
LRB 500 HS
NF A 35-016 France FeE400
FeE500-3 HS
UNI 6407 Italy FEB 44K HS
JIS G 3112 :2010 Japan SD295B W
SD345 W
SD390 W
SD490 W + HS

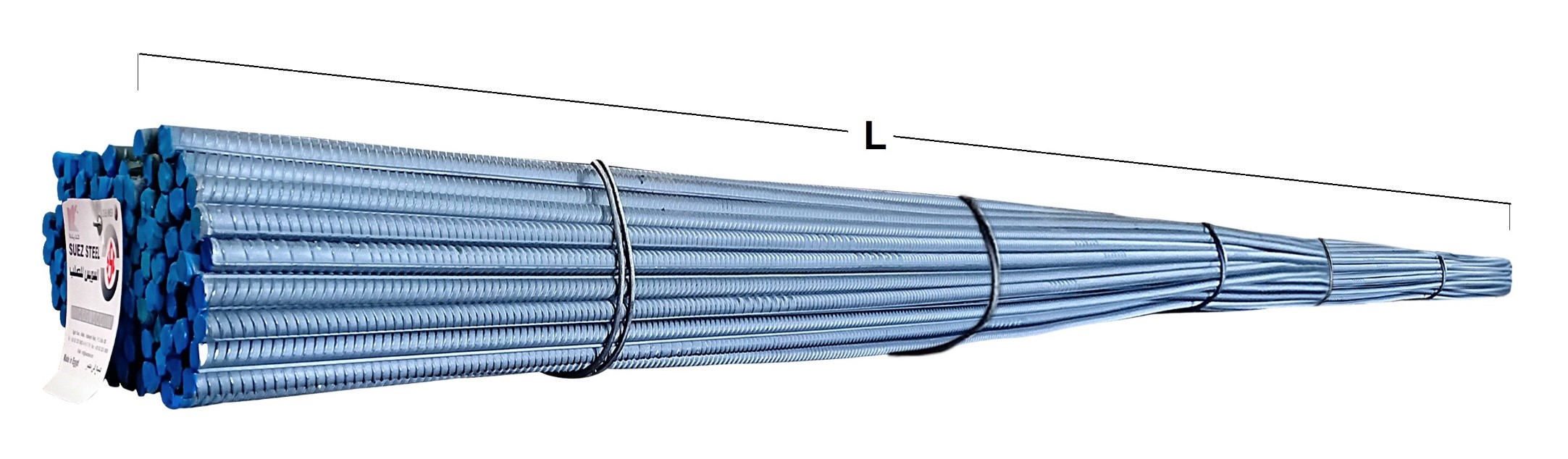

General Packing of Rebar in Bundles
Weight Length (L) Tying
2000 Kg 6 ~ 24 meter 4 ~ 12 equidistance double ties of 6mm according to bundle length
Sizes R8 R10 R12 R14 R16 R18 R20 R22 R25 R28 R32 R36 R40
No. of bars in bundle (1) 422 270 188 138 105 83 67 56   34 26 21 17
(1) Number of bars per bundles are based on theoritical unit weight per 2 tons bundle
Features Designation
W Weldable
HS High Stress
HD High Ductility
EQR Earthquake Resistance
Other Standards and packing options are upon agreement
